SKU: MM-PDMGS000

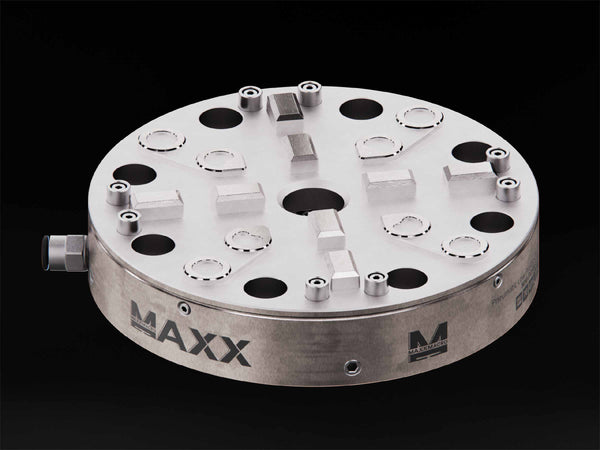

MaxxMagnum Pneumatic Chuck D150 Manual Short Drawbar Low Profile

Regular price $4,599.00 CAD Sale

MaxxMagnum Pneumatic Chuck D150 Manual Short Drawbar Low Profile comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system....
MaxxMacro features
MaxxMAGNUM
INOX
Pneumatic
Availability: 1-2 Weeks Delivery contact us for more details
Availability: 1-2 Weeks Delivery contact us for more details

$4,599.00

MaxxMagnum Pneumatic Chuck D150 Manual Short Drawbar Low Profile comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Suitable for 5 Axis Machining.

MaxxDesign Exclusive Features:

  • High quality materials: Stainless 440C design.
  • Includes Air-blast cleaning of the Z-references
  • Inclides Turbo-locking of MaxxMagnum pallets.

Product Information:

MaxxMagnum Pneumatic Chuck D150 Manual Short Drawbar Low Profile is 100% cross compatible with System 3R Macro Magnum Low Profile Pneumatic Chucks.

MaxxMagnum Pneumatic Chuck D150 Manual Short Drawbar Low Profile provides the best balance of durability , accuracy and design.

  • Repeatability: 0.002 mm (0.00008“)
  • Does not include the sealing ring; we offer it as a spare item.

Chuck Information

  • Clamping Type: Pneumatic
  • Mounting Bores: See print
  • Drawbar Required: MM-DRWBR101 (MX-STDR3R-1)
  • Force Power: 16000N
  • Requires air pressure: 6±1 bar
  • Does not include the sealing ring; we offer it as a spare item.

Product Details:

Product Name MaxxMagnum Pneumatic Chuck D150 Manual Short Drawbar Low Profile
SKU MM-PDMGS000 (MX-MM26712)
Pallet Included -
System MaxxMacro (System 3R 100% Cross-Compatible)
Repeatability 0.002mm
Material Stainless Steel 440c, 57-60HRC.
Cross-Compatible 3R-SP26712 90809.03
Dimensions -
Weight -
